Building microservices is not just about splitting code into smaller services. It is about designing a distributed system that is resilient, scalable, and maintainable. Without the right patterns and practices, microservices can quickly turn into a tangled mess — slow, hard to debug, and difficult to scale.

In this article, we will explore the essential design patterns every Java developer should use when building microservices. These patterns are explained in simple language, with practical value in mind, and use the latest tools that are not deprecated.

Let’s get started.

1. API Gateway Pattern

The Problem:

When microservices are exposed directly to clients, clients must know the location of each service. They also deal with cross-cutting concerns like authentication, rate limiting, and CORS.

The Solution:

Use an API Gateway that acts as a single entry point. It forwards requests to the appropriate microservice and handles common concerns like authentication and request logging.

Java Implementation:

Use Spring Cloud Gateway, which is the recommended and actively maintained API gateway in the Spring ecosystem.

spring:
  cloud:
    gateway:
      routes:
        - id: order-service
          uri: http://localhost:8081
          predicates:
            - Path=/orders/**

Benefits:

Centralized security, logging, and throttling
One endpoint for external clients
Simplified client-side code

➡️ Spring Boot Microservices API Gateway Example

2. Service Discovery Pattern

The Problem:

Hardcoding service locations is not flexible. In modern environments, services scale dynamically, and IP addresses change frequently.

The Solution:

Use a service registry that keeps track of all running service instances. Services register themselves, and other services query the registry to find them.

Java Implementation:

Spring Cloud Kubernetes or Consul is preferred over the older Eureka. Kubernetes natively supports service discovery with built-in DNS resolution.

If you’re using Kubernetes:

apiVersion: v1
kind: Service
metadata:
  name: order-service
spec:
  selector:
    app: order-service
  ports:
    - protocol: TCP
      port: 80
      targetPort: 8080

Benefits:

No hardcoded URLs
Automatic load distribution
Works well with auto-scaling environments

➡️ Spring Boot Microservices Eureka Server Tutorial | Service Discovery Guide

3. Centralized Configuration Pattern

The Problem:

Microservices need configuration like database URLs, API keys, and environment-specific values. Duplicating these across services is error-prone.

The Solution:

Use a central configuration server to manage and serve configuration for all services.

Java Implementation:

Spring Cloud Config Server is the recommended solution. It stores configuration in Git or Vault and serves it via REST endpoints.

spring.config.import=optional:configserver:http://config-server:8888

You can also use HashiCorp Vault to manage secrets securely and integrate it with Spring.

Benefits:

Centralized management of config values
Environment-specific configurations
Secure storage for sensitive information

Spring Boot Microservices Config Server Example
In this tutorial, we'll create two Spring Boot microservices and use Spring Cloud Config Server to manage their…www.javaguides.net

4. Circuit Breaker Pattern

The Problem:

When a dependent service is down or slow, repeated requests can overload the entire system and lead to cascading failures.

The Solution:

Use a circuit breaker to monitor calls and stop sending requests when the target service is failing. After a timeout, the circuit opens again to check if the service has recovered.

Java Implementation:

Use Resilience4j, which is lightweight, modern, and officially supported in the Spring ecosystem.

@CircuitBreaker(name = "inventoryService", fallbackMethod = "fallbackInventory")
public Inventory getInventory(String productId) {
    return restTemplate.getForObject("/inventory/" + productId, Inventory.class);
}

Benefits:

Prevents system-wide outages
Automatically retries or falls back
Improves resilience

➡️ ️️Circuit Breaker Pattern in Microservices using Spring Boot 3, WebClient and Resilience4j

5. Asynchronous Messaging Pattern

The Problem:

REST-based communication is synchronous, which means the caller must wait for a response. This causes delays and tight coupling.

The Solution:

Use message queues or event brokers to enable asynchronous, decoupled communication.

Java Implementation:

Use Apache Kafka or RabbitMQ along with Spring Cloud Stream or Spring Kafka.

@Service
public class OrderProducer {
    @Autowired
    private KafkaTemplate<String, OrderEvent> kafkaTemplate;

    public void sendOrderEvent(OrderEvent event) {
        kafkaTemplate.send("orders", event);
    }
}

Benefits:

Better performance and responsiveness
Decoupled services
Easy to scale event consumers

6. Distributed Tracing Pattern

The Problem:

A single user request may go through multiple services. If something breaks, it’s hard to know where the problem occurred.

The Solution:

Use distributed tracing to track requests across services with unique trace IDs.

Modern Java Solution:

Use OpenTelemetry, which replaces the now-deprecated Spring Cloud Sleuth. OpenTelemetry is the new industry standard and supports integration with tools like Jaeger or Zipkin.

OpenTelemetry openTelemetry = OpenTelemetrySdk.builder().build();
Tracer tracer = openTelemetry.getTracer("order-service");

Span span = tracer.spanBuilder("place-order").startSpan();
span.setAttribute("orderId", "12345");
span.end();

Benefits:

Helps diagnose latency issues
Tracks the request lifecycle
Integrates well with observability tools

7. Security with OAuth2 and JWT

The Problem:

With many microservices, managing authentication and user sessions becomes complex. You don’t want to handle login in each service.

The Solution:

Use OAuth2 and JWT tokens for secure, centralized authentication. The user logs in once and receives a token that is passed to each service.

Java Implementation:

Use Spring Security with OAuth2 Resource Server.

http
  .authorizeRequests()
  .anyRequest().authenticated()
  .and()
  .oauth2ResourceServer().jwt();

You can use Keycloak, Auth0, or Okta as the authorization server.

Benefits:

Stateless and secure authentication
Easy to scale across services
No need to manage sessions manually

8. Saga Pattern for Distributed Transactions

The Problem:

Each microservice has its own database. This makes multi-service transactions hard to manage using traditional methods like ACID.

The Solution:

Use the Saga pattern. Each service performs its task and publishes an event. If any step fails, compensating actions are triggered to roll back changes.

Java Implementation:

You can use Axon Framework or build your own saga using Kafka and event-driven architecture.

@Saga
public class OrderSaga {
    @StartSaga
    @SagaEventHandler(associationProperty = "orderId")
    public void handle(OrderPlacedEvent event) {
        // call inventory service
    }
}

Benefits:

Ensures data consistency
No need for distributed transactions
Works well in asynchronous systems

➡️ Saga Pattern in Microservices: A Step-by-Step Guide

Final Thoughts

Microservices can be powerful when done right, but they can also become difficult to manage without clear design practices. Java developers have access to modern tools and patterns that make microservices reliable, testable, and production-ready.

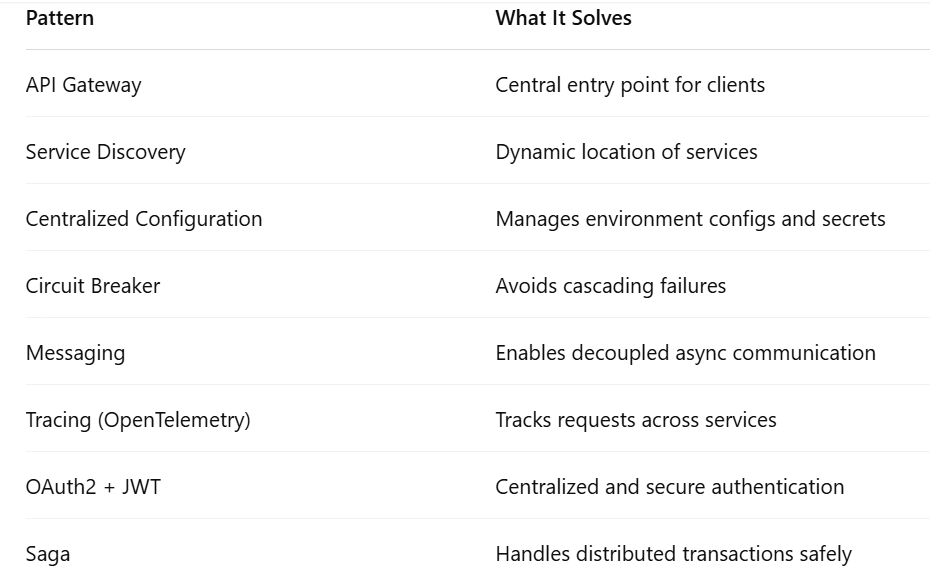

Recap: Patterns You Should Use

Use these patterns wisely. Not every project needs all of them, but as your microservices architecture grows, these patterns will help you scale safely and maintain control.
