React JS ( React Hooks) + Spring Boot Tutorial

In this tutorial, we will learn how to build a simple Full Stack application using Spring boot as backend and React JS (React Hooks) as frontend.

The objective of this tutorial:

  • How to use React Hooks in React application
  • How to integrate React app with Spring boot application.
React is used to build user interfaces (UI) on the front end.

Spring boot is popular to develop RESTful web services and microservices.

React Hooks are a new addition in React 16.8. They let you use state and other React features without writing a class.

As we know, React is a JavaScript-based library that does not have the ability to make HTTP requests; thus, we need to use third-party libraries to achieve this.
There are plenty of libraries available to make HTTP calls into React apps. A few of them are listed below.
  • Axios
  • Fetch
  • Superagent
  • React-axios
  • Use-http
  • React-request
We will use the Axios HTTP library to make HTTP Get REST API call in this example tutorial.

YouTube Video

What we will build?

We will build two projects:
  1. springboot-backend - Develop and expose REST APIs
  2. react-frontend - Consume REST APIs

1. Develop Spring boot application - Backend

Let's begin with creating a Spring boot application and build a simple REST API.

1. Create a Spring Boot Application

There are many ways to create a Spring Boot application. You can refer to the below articles to create a Spring Boot application.

2. Add maven dependencies

Here is a complete pom.xml file for your reference:
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.5.3</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>net.javaguides</groupId>
	<artifactId>springboot-backend</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>springboot-backend</name>
	<description>Spring Boot backend application</description>
	<properties>
		<java.version>16</java.version>
	</properties>
	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-data-jpa</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>com.h2database</groupId>
			<artifactId>h2</artifactId>
			<scope>runtime</scope>
		</dependency>
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<optional>true</optional>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
				<configuration>
					<excludes>
						<exclude>
							<groupId>org.projectlombok</groupId>
							<artifactId>lombok</artifactId>
						</exclude>
					</excludes>
				</configuration>
			</plugin>
		</plugins>
	</build>

</project>

3. Create JPA Entity - Employee.java

Let's create a new package called entity inside net.javaguides.springboot package and then create the Employee class inside the entity package with the following contents -
package net.javaguides.springboot.entity;

import lombok.*;

import javax.persistence.*;

@Getter
@Setter
@NoArgsConstructor
@AllArgsConstructor
@Builder
@Entity
@Table(name = "employees")
public class Employee {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private long id;

    @Column(name = "first_name", nullable = false)
    private String firstName;

    @Column(name = "last_name")
    private String lastName;
    private String email;

}

4. Create Spring Data JPA Repository - EmployeeRepository.java

No, we gonna create a Spring Data JPA repository to talk with the H2 database.
Let's create a new package called repository inside net.javaguides.springboot package and then create the following EmployeeRepository interface inside the repository package -
package net.javaguides.springboot.repository;

import net.javaguides.springboot.entity.Employee;
import org.springframework.data.jpa.repository.JpaRepository;

public interface EmployeeRepository extends JpaRepository<Employee, Long> {

}

5. Spring Controller with REST API - /api/employees

Let's create a new package called controller inside net.javaguides.springboot package and then create the following EmployeeController class inside the controller package with following contents -
package net.javaguides.springboot.controller;

import net.javaguides.springboot.entity.Employee;
import net.javaguides.springboot.repository.EmployeeRepository;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.List;

@RestController
@RequestMapping("/api")
@CrossOrigin("http://localhost:3000/")
public class EmployeeController {

    @Autowired
    private EmployeeRepository employeeRepository;

    @GetMapping("/employees")
    public List<Employee> fetchEmployees(){
        return employeeRepository.findAll();
    }
}
Note that we have added below line of code to avoid CORS issues:
@CrossOrigin(origins = "http://localhost:3000")

6. Run Spring Boot Application and Test Rest API

Let's insert a few records in the employees table while application startup.
package net.javaguides.springboot;

import net.javaguides.springboot.entity.Employee;
import net.javaguides.springboot.repository.EmployeeRepository;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.CommandLineRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringbootBackendApplication implements CommandLineRunner {

	public static void main(String[] args) {
		SpringApplication.run(SpringbootBackendApplication.class, args);
	}

	@Autowired
	private EmployeeRepository employeeRepository;

	@Override
	public void run(String... args) throws Exception {

		Employee employee1 = Employee.builder()
				.firstName("Ramesh")
				.lastName("Fadatare")
				.email("ramesh@gmail.com")
				.build();

		Employee employee2 = Employee.builder()
				.firstName("Tony")
				.lastName("Stark")
				.email("tony@gmail.com")
				.build();

		Employee employee3 = Employee.builder()
				.firstName("John")
				.lastName("Cena")
				.email("cena@gmail.com")
				.build();

		employeeRepository.save(employee1);
		employeeRepository.save(employee2);
		employeeRepository.save(employee3);
	}
}
Let's run this spring boot application from IDE -> Right-click -> Run As -> Java Application:

Hit this "http://localhost:8080/api/employees" link in a browser will popular list of employees as JSON:

[
   {
      "id":1,
      "firstName":"Ramesh",
      "lastName":"Fadatare",
      "email":"ramesh@gmail.com"
   },
   {
      "id":2,
      "firstName":"Tony",
      "lastName":"Stark",
      "email":"tony@gmail.com"
   },
   {
      "id":3,
      "firstName":"John",
      "lastName":"Cena",
      "email":"cena@gmail.com"
   }
]

2. Build React JS Frontend Application

Let's go ahead and create a React application to consume /api/employees REST API.
We will use VS Code IDE to build React application.
We will use React Hook (useState) to use state in the functional components.

1 - Create a React UI with Create React App

The Create React App CLI tool is an officially supported way to create single-page React applications. It offers a modern build setup with no configuration.
To create a new React app, open terminal in VS Code and type the below command:
npx create-react-app react-frontend
Running any of these commands will create a directory called react-frontend inside the current folder. Inside that directory, it will generate the initial project structure and install the transitive dependencies:
react-frontend
├── README.md
├── node_modules
├── package.json
├── .gitignore
├── public
│   ├── favicon.ico
│   ├── index.html
│   ├── logo192.png
│   ├── logo512.png
│   ├── manifest.json
│   └── robots.txt
└── src
    ├── App.css
    ├── App.js
    ├── App.test.js
    ├── index.css
    ├── index.js
    ├── logo.svg
    └── serviceWorker.js
Let's explore important files and folders of the react project.
For the project to build, these files must exist with exact filenames:
  • public/index.html is the page template;
  • src/index.js is the JavaScript entry point.
You can delete or rename the other files Let's quickly explore the project structure.

package.json - The package.json file contains all the required dependencies for our React JS project. Most importantly, you can check the current version of React that you are using. It has all the scripts to start, build, and eject our React app.
public folder - The public folder contains index.html. As react is used to build a single page application, we have this single HTML file to render all our components. Basically, it's an HTML template. It has a div element with id as root and all our components are rendered in this div with index.html as a single page for the complete react app.
src folder- In this folder, we have all the global javascript and CSS files. All the different components that we will be building, sit here.
index.js - This is the top renderer of your react app.
node_modules - All the packages installed by NPM or Yarn will reside inside the node_modules folder.
App.js - The App.js file contains the definition of our App component which actually gets rendered in the browser and this is the root component.

2 - Adding Bootstrap in React Using NPM

Open a new terminal window, navigate to your project's folder, and run the following command:
$ npm install bootstrap --save
After installing the bootstrap package, you will need to import it into your React app entry file.
Open the src/index.js file and add the following code:
import 'bootstrap/dist/css/bootstrap.min.css';

src/index.js

Here is the complete code for the index.js file:
import React from 'react';
import ReactDOM from 'react-dom';
import './index.css';
import App from './App';
import * as serviceWorker from './serviceWorker';
import 'bootstrap/dist/css/bootstrap.min.css';

ReactDOM.render(
  <React.StrictMode>
    <App />
  </React.StrictMode>,
  document.getElementById('root')
);

// If you want your app to work offline and load faster, you can change
// unregister() to register() below. Note this comes with some pitfalls.
// Learn more about service workers: https://bit.ly/CRA-PWA
serviceWorker.unregister();

3. React Service Component - REST API Call

For our API calls, we will be using Axios. Below is the npm command to install Axios.
npm add axios
Below is the EmployeeServce.js service implementation to make our HTTP REST call via Axios.
import axios from 'axios';

const EMPLOYEE_API_BASE_URL = 'http://localhost:8080/api/employees';

class EmployeeService{

    getEmployees(){
        return axios.get(EMPLOYEE_API_BASE_URL);
    }
}

export default new EmployeeService();
Note that our backend Employee endpoint is available at http://localhost:8080/api/employees.
Make sure that you create an object of EmployeeService class export it as:
export default new EmployeeService();

4. Develop a React Component

Components are the building blocks of our whole react app. They are like functions that accept inputs in terms of props, state, and outputs a UI that is rendered in the browser. They are reusable and composable.
React components can be either a function component or a class component. In this example, we are going to use the functional component with Reach Hooks.
Let's create an EmployeeComponent.js file and add the following code to it.
import React, {useState, useEffect} from 'react'
import EmployeeService from '../services/EmployeeService';

function EmployeeComponent() {

    const [employees, setEmployees] = useState([])

    useEffect(() => {
        getEmployees()
    }, [])

    const getEmployees = () => {

        EmployeeService.getEmployees().then((response) => {
            setEmployees(response.data)
            console.log(response.data);
        });
    };

    return (
        <div className = "container">

            <h1 className = "text-center"> Employees List</h1>

            <table className = "table table-striped">
                <thead>
                    <tr>
                        <th> Employee Id</th>
                        <th> Employee First Name</th>
                        <th> Employee Last</th>
                        <th> Employee Email</th>
                    </tr>

                </thead>
                <tbody>
                    {
                        employees.map(
                                employee =>
                                <tr key = {employee.id}>
                                    <td> {employee.id }</td>
                                    <td> {employee.firstName }</td>
                                    <td> {employee.lastName }</td>
                                    <td> {employee.email }</td>

                                </tr>

                        )
                    }

                </tbody>


            </table>

        </div>
    )
}

export default EmployeeComponent
Let's understand the React Hooks used in above code snippet.

useState() hook

The useState is a Hook (function) that allows you to have state variables in functional components. You pass the initial state to this function and it returns a variable with the current state value (not necessarily the initial state) and another function to update this value.
    const [employees, setEmployees] = useState([])

useEffect() hook

The useEffect Hook allows us to perform side effects (an action) in the function components. It does not use components lifecycle methods that are available in class components. In other words, Effects Hooks are equivalent to componentDidMount(), componentDidUpdate(), and componentWillUnmount() lifecycle methods.

Side effects have common features which the most web applications need to perform, such as:
  • Updating the DOM,
  • Fetching and consuming data from a server API,
  • Setting up a subscription, etc.
Example: Making REST API call:
    useEffect(() => {
        getEmployees()
    }, [])

    const getEmployees = () => {

        EmployeeService.getEmployees().then((response) => {
            setEmployees(response.data)
            console.log(response.data);
        });
    };

5. App.js

In the previous step, we have created EmployeeComponent so let's go ahead add EmployeeComponent to App component:
import './App.css';
import EmployeeComponent from './components/EmployeeComponent';

function App() {
  return (
    <EmployeeComponent />
  );
}

export default App;

6. Run React App

Use the below command to start the project:
npm start
Use yarn to start the project:
yarn start

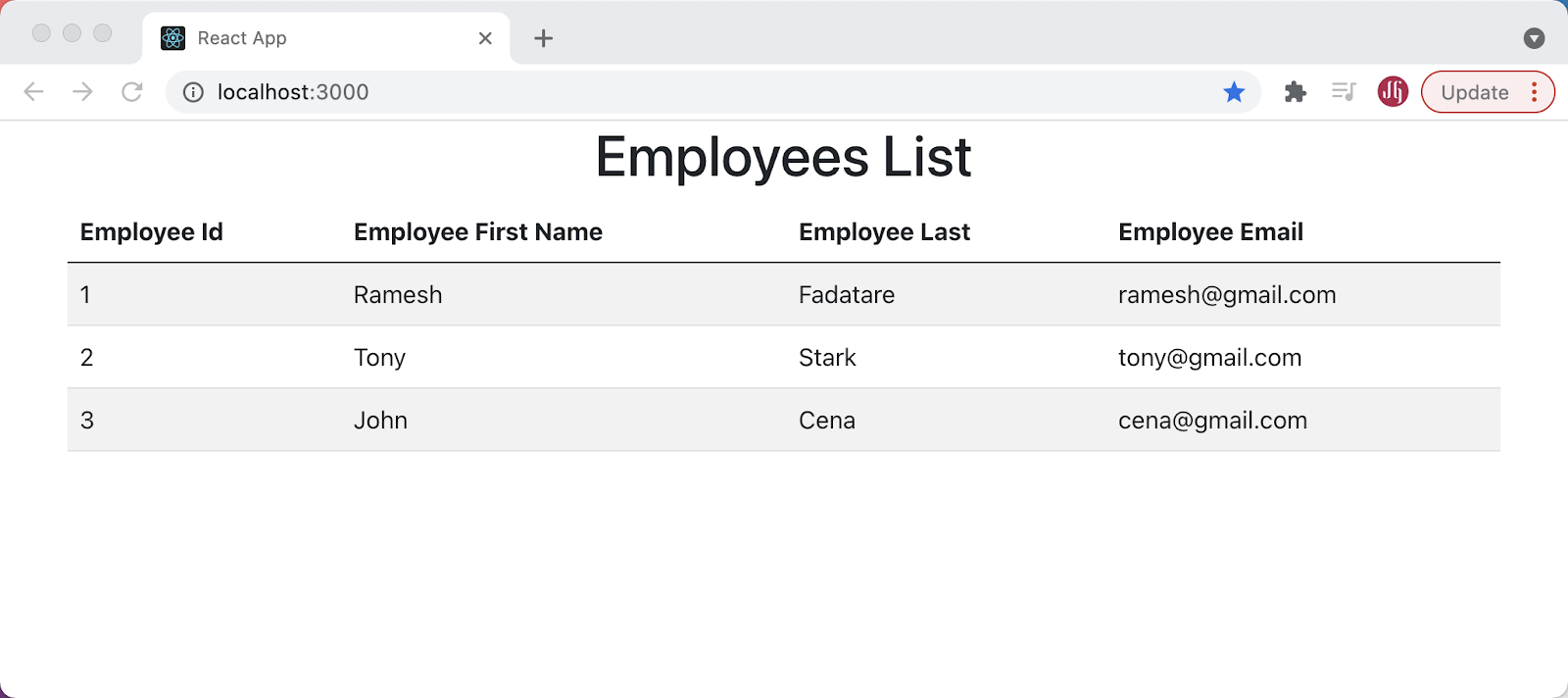

Runs the app in development mode. Open http://localhost:3000 to view it in the browser.

3. Conclusion

In this tutorial, we have learned how to build a simple Full Stack application using Spring boot as backend and React JS (React Hooks) as frontend.

Let me know if you have any queries about this tutorial in below comment section.

Comments
